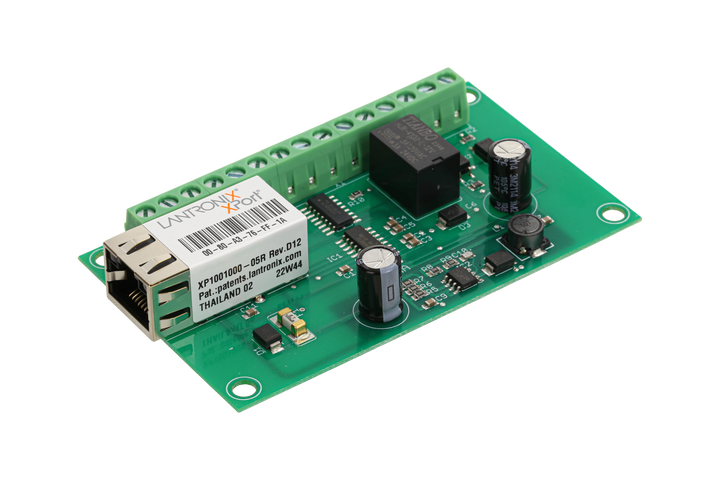

ID Access Controller
The decision-maker — web-managed, 10,000 identities, AES-256.
€115,00
Supplied under the ID Network product programme. We confirm compatibility, completeness and fit with you before anything ships. We verify. You decide.
The controller ID Network has built its own verified access installations on — engineered and supported in Estonia.
Internet-Based Access Control System
Overview
The ID Access Controller is a network-enabled access control solution designed for reliable and scalable management of entry points in commercial and industrial environments. The system allows administrators to manage users, monitor events, and control doors remotely through a standard web browser. The platform supports operation over Internet, Intranet, LAN, and wireless network infrastructures, enabling centralized access management from virtually any location.
Key Features
- Network-ready plug-and-play setup
- Web-based administration through standard browsers
- Password-protected administrator and user logins
- Real-time event and alarm notifications via email or SMS
- Remote door opening over the Internet
- Forced door alarm reporting to central monitoring station
- Event and user activity search
- Event export to CSV format for reporting and analysis
System Architecture
ID Access Controllers communicate over TCP/IP networks using standard Ethernet infrastructure. The system typically consists of an ID Access Controller installed at the door, client workstations for administration, and optionally a central monitoring station. Communication between components is handled over Internet, Intranet, LAN, or wireless networks.
Technical Specifications
| Category | Specification |
|---|---|
| Power Supply | 12 VDC, 150 mA |
| Operating Temperature | -40°C to +85°C |
| Card Reader Interface | RS-232 output format reader |
| Maximum Card Holders | 10,000 |
| Local Event Buffer | 1,000 events |
| Card Schedules | 255 |
| Supported Controllers | Not limited |
| Magnetic Contact Input |
NC (Normally Closed) |
| Door Open Button Input | NO (Normally Open) |
| Relay Output |
NO / NC, 12 V 1 A |
| Alarm Output Format |
Contact ID |
| Network Interface | RJ45 Ethernet |
| Supported Protocols | TCP/IP, UDP/IP, Telnet, DHCP |
| Encryption |
256-bit AES |
Typical Applications
Office buildings • Industrial facilities • Warehouses • Data centers • Commercial premises • Remote sites requiring centralized access control management.
ID Access Controller provides a scalable and secure access control platform suitable for both small installations and enterprise-level deployments requiring centralized monitoring and remote management.
ID Network Quality Statement
This product is supplied under the ID Network product programme. Every unit is identified by an ID Network SKU and EAN, passes ID Network quality assurance, and is backed by the ID Network warranty and technical support.
