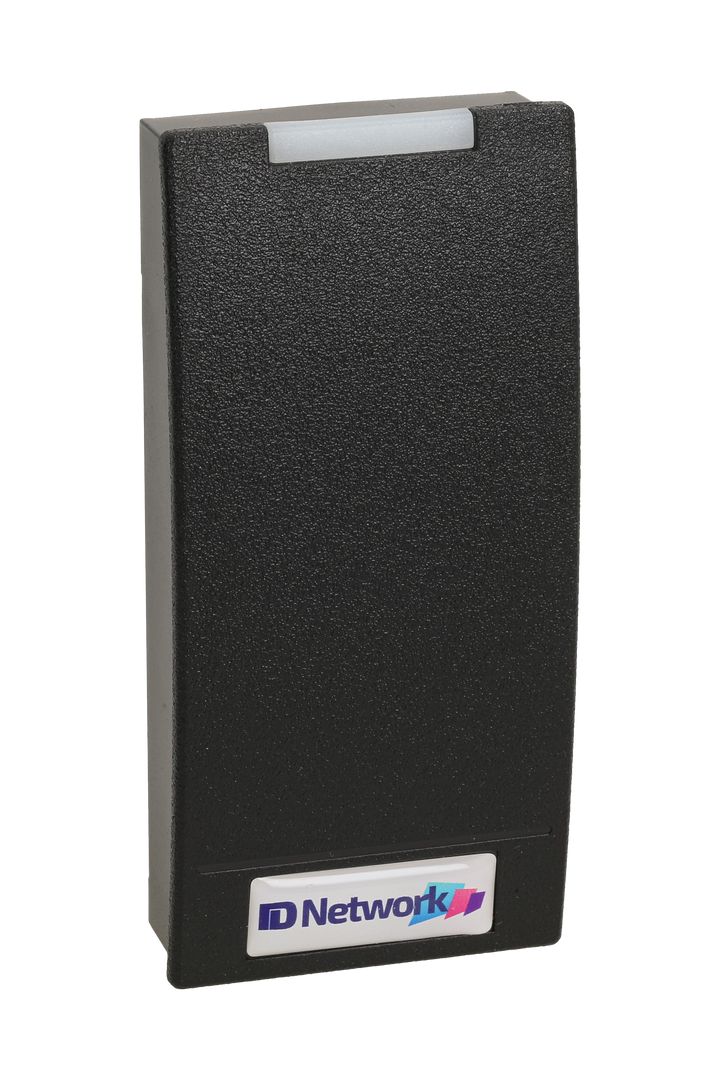

IDN MF232 Card Reader
Card reader for the doors most people walk through. IP68.
€39,00
Supplied under the ID Network product programme. We confirm compatibility, completeness and fit with you before anything ships. We verify. You decide.
Designed and supported by ID Network in Estonia, as part of verified access-control installations in daily use.
MIFARE Contactless Access Control Reader
Overview
The IDN MF232 is a compact MIFARE card reader designed for access control systems. It supports ISO 14443A MIFARE contactless cards and communicates with controllers via RS232 interface. The device is suitable for indoor and outdoor environments thanks to its robust IP68 protection rating.
Key Features
- MIFARE ISO 14443A contactless card support
- RS232 communication interface
- Compact and durable design
- Wide operating temperature range
- Suitable for indoor and outdoor installations
Technical Specifications
| Category | Specification |
|---|---|
| Power Supply |
9–15 VDC |
| Card Standard |
ISO 14443A MIFARE |
| Operating Frequency |
13.56 MHz |
| Reading Distance |
3–10 cm |
| Interface |
RS232 |
| LED Indicators |
Red, Green |
| Operating Temperature |
-30°C to +85°C |
| EMC Compliance |
CE compliant |
| Protection Class |
IP68 |
Designed for secure access control applications, this reader provides reliable identification and seamless integration with access control systems and controllers using a standard RS232 interface.
ID Network Quality Statement
This product is supplied under the ID Network product programme. Every unit is identified by an ID Network SKU and EAN, passes ID Network quality assurance, and is backed by the ID Network warranty and technical support.
