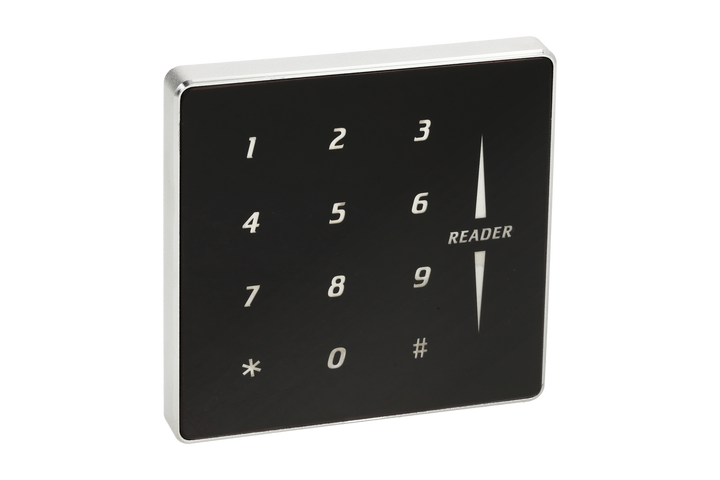

IDN MPIN232 Reader
Card + PIN, for doors where presence alone is not enough.
€45,00
Supplied under the ID Network product programme. We confirm compatibility, completeness and fit with you before anything ships. We verify. You decide.
Designed and supported by ID Network in Estonia, as part of verified access-control installations in daily use.
MIFARE and PIN Code Access Control Reader
Overview
The IDN MPIN232 is a compact access control reader supporting both MIFARE contactless cards and PIN code authentication. The device is designed for integration with access control systems via RS232 communication interface. Its slim design allows installation in modern building environments while providing reliable identification and user authentication.
Key Features
- MIFARE ISO 14443A contactless card support
- PIN code authentication via integrated keypad
- RS232 communication interface
- LED status indicators (red/green)
- Compact design for wall installation
- Reliable operation in indoor environments
Technical Specifications
| Category | Specification |
|---|---|
| Power Supply |
9–15 VDC |
| Supported Credentials |
MIFARE cards, PIN code |
| Card Standard |
ISO 14443A MIFARE |
| Operating Frequency |
13.56 MHz |
| Reading Distance |
3–10 cm |
| Interface |
RS232 |
| LED Indicators |
Red, Green |
| Operating Temperature |
-20°C to +65°C |
| EMC Compliance |
CE compliant |
| Dimensions |
86 × 86 × 9 mm |
IDN MPIN232 Reader is suitable for secure access control applications where both card-based and PIN code authentication are required.
ID Network Quality Statement
This product is supplied under the ID Network product programme. Every unit is identified by an ID Network SKU and EAN, passes ID Network quality assurance, and is backed by the ID Network warranty and technical support.
