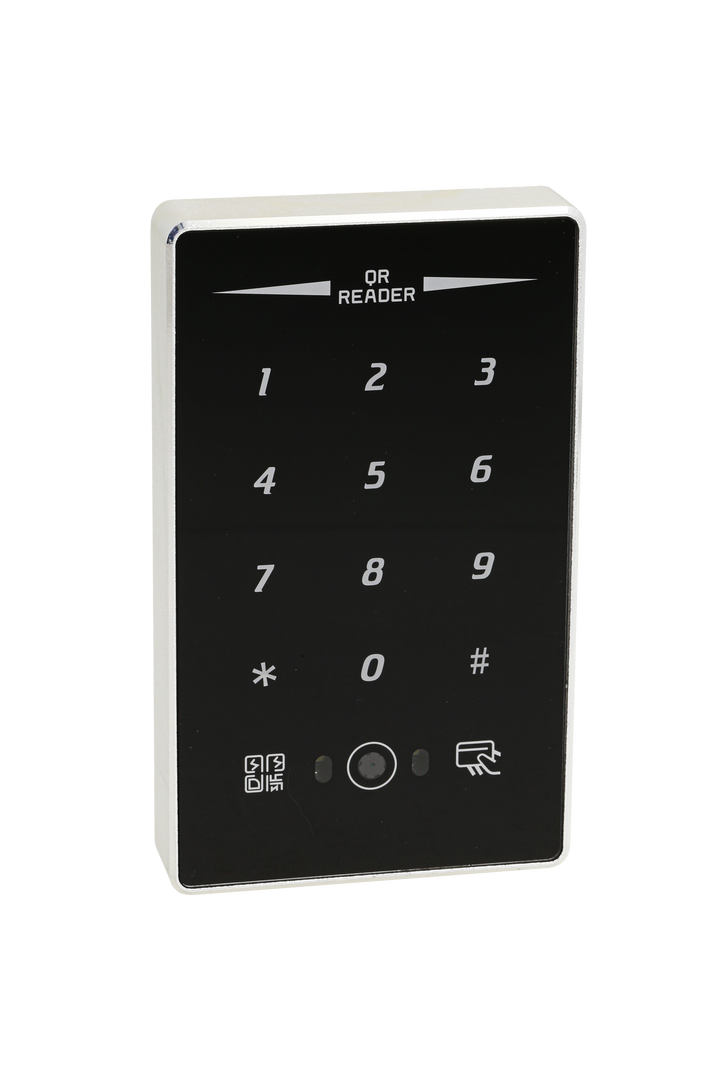

IDN MQP232 Multi Technology Reader
Card + PIN + QR — when visitors and temporary access are part of the day. IP67.
€105,00
Supplied under the ID Network product programme. We confirm compatibility, completeness and fit with you before anything ships. We verify. You decide.
Designed and supported by ID Network in Estonia, as part of verified access-control installations in daily use.
MIFARE, PIN and QR Code Access Reader
Overview
The IDN MQP232 is a multifunction access control reader supporting MIFARE cards, PIN authentication, and QR code scanning. The device supports both 1D and 2D QR codes and communicates with access control controllers via RS232 interface. Its robust design and IP67 protection rating allow installation in demanding environments.
Key Features
- MIFARE ISO 14443A card support
- PIN code authentication
- QR code scanning (1D and 2D)
- RS232 communication interface
- LED status indication (red/green)
- Reliable operation in industrial environments
Technical Specifications
| Category | Specification |
|---|---|
| Power Supply |
9–15 VDC |
| Supported Credentials |
MIFARE cards, PIN code, QR codes |
| QR Code Types |
1D and 2D |
| Operating Frequency |
13.56 MHz |
| Reading Distance |
3–10 cm |
| Interface |
RS232 |
| LED Indicators |
Red, Green |
| Operating Temperature |
-25°C to +65°C |
| EMC Compliance |
CE compliant |
| Protection Class |
IP67 |
Designed for secure access control applications, this reader provides reliable identification and seamless integration with access control systems and controllers using a standard RS232 interface.
ID Network Quality Statement
This product is supplied under the ID Network product programme. Every unit is identified by an ID Network SKU and EAN, passes ID Network quality assurance, and is backed by the ID Network warranty and technical support.
