SCP-35 – 35W Single Output Switching Power Supply
35 W with battery backup — the power behind a typical door.
€25,00
Supplied under the ID Network product programme. We confirm compatibility, completeness and fit with you before anything ships. We verify. You decide.
Selected and verified by ID Network as the power behind its own access installations.
Overview

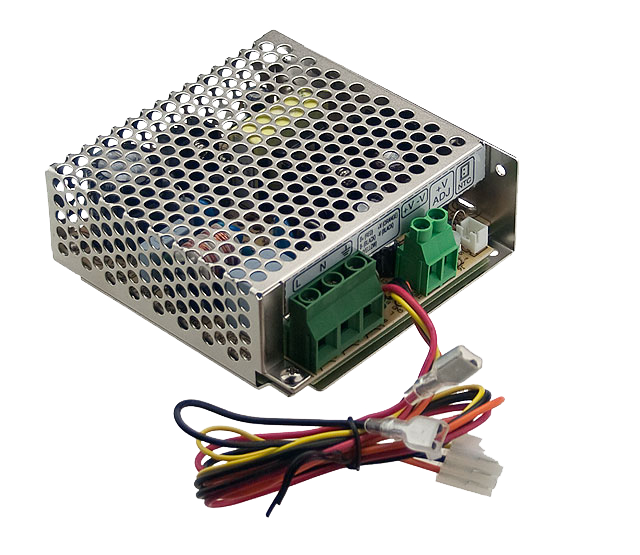

The Mean Well SCP-35 is a reliable 35W single output switching power supply designed for security systems, access control, and industrial applications. It features a universal AC input and supports battery backup integration, ensuring continuous operation in case of power failure.
Built with high efficiency and robust protection mechanisms, the SCP-35 provides stable DC output with low noise and excellent performance. Its compact design and convection cooling make it suitable for various indoor installations requiring dependable power delivery.
Key Features
- Universal AC input / Full range
- Short circuit, overload, and over-voltage protection
- Battery protection (reverse polarity protection by fuse)
- Built-in temperature compensation function
- Output voltage detection signal
- Cooling by free air convection
- LED indicator for power status
- Low no-load power consumption (<0.75W)
- 100% full load burn-in test
- Compact design with 2-year warranty
Technical Specifications
| Category | Specification |
|---|---|
| Output Power | 35W |
| DC Voltage | 13.8V / 27.6V (model dependent) |
| Current Range | Up to 2.6A (12V model) / 1.4A (24V model) |
| Input Voltage | 85 ~ 264VAC / 120 ~ 370VDC |
| Frequency Range | 47 ~ 63Hz |
| Efficiency | Up to 83–86% |
| Protection | Short circuit / Overload / Over voltage / Battery protection |
| Cooling | Free air convection |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 99 × 97 × 36 mm (L×W×H) |
| Weight | 0.37 kg |
Typical Applications
Access control systems • Security and surveillance systems • Alarm systems • Industrial automation • Battery backup power systems.
The Mean Well SCP-35 provides stable and efficient power delivery with integrated protection features, making it an ideal choice for security and industrial power applications.
